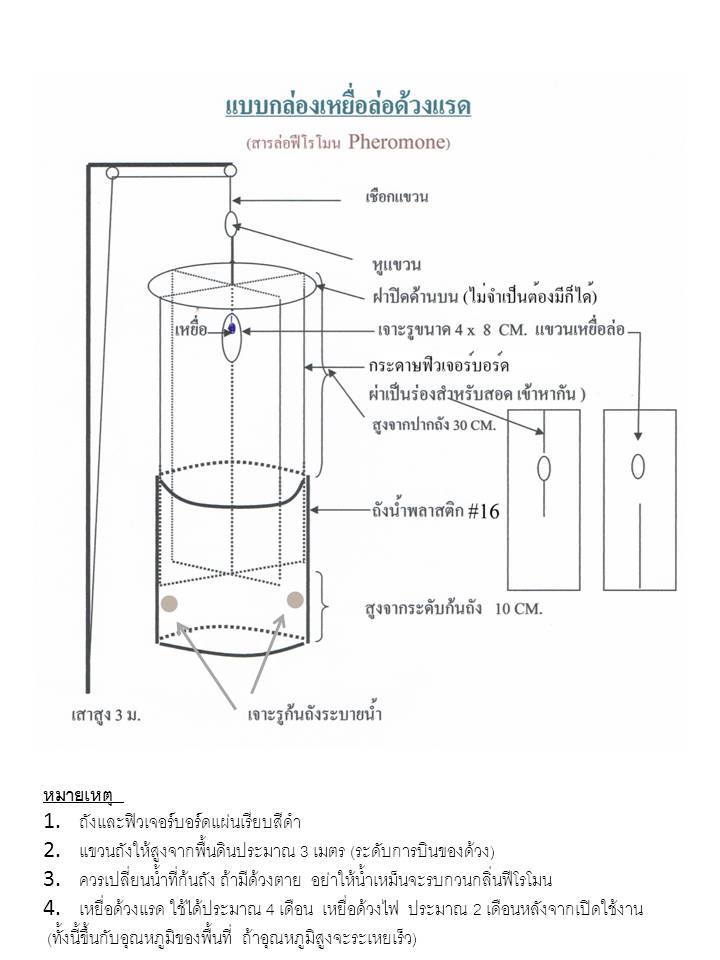

Drawing of Rhino Beetle Pheromone Trap

Assembly Manual

Materials Needed:

• 16-18 liter black bucket
• Corrugated plastic board (2 pieces, 40-60 cm high, 30-40 cm wide)
• Wire

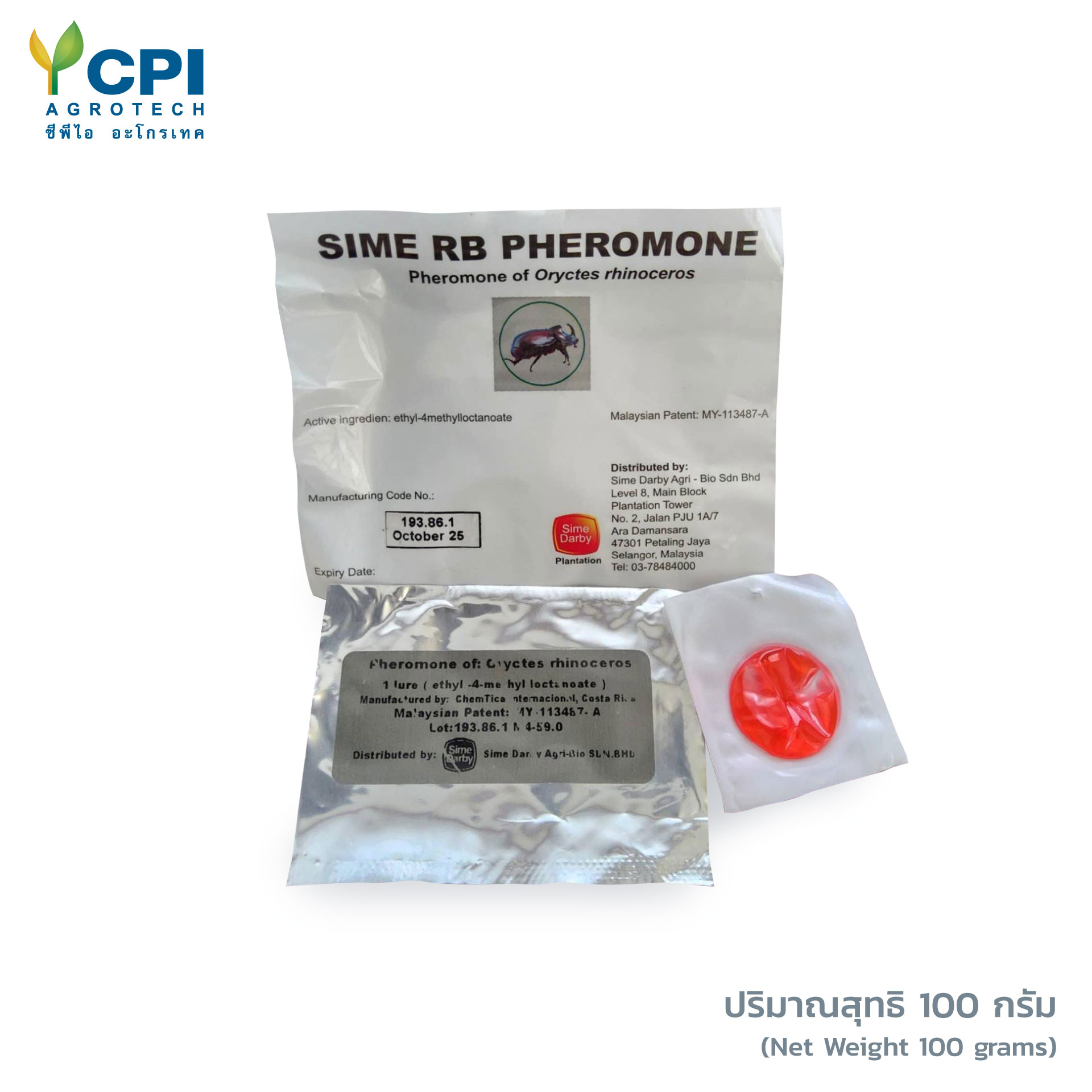

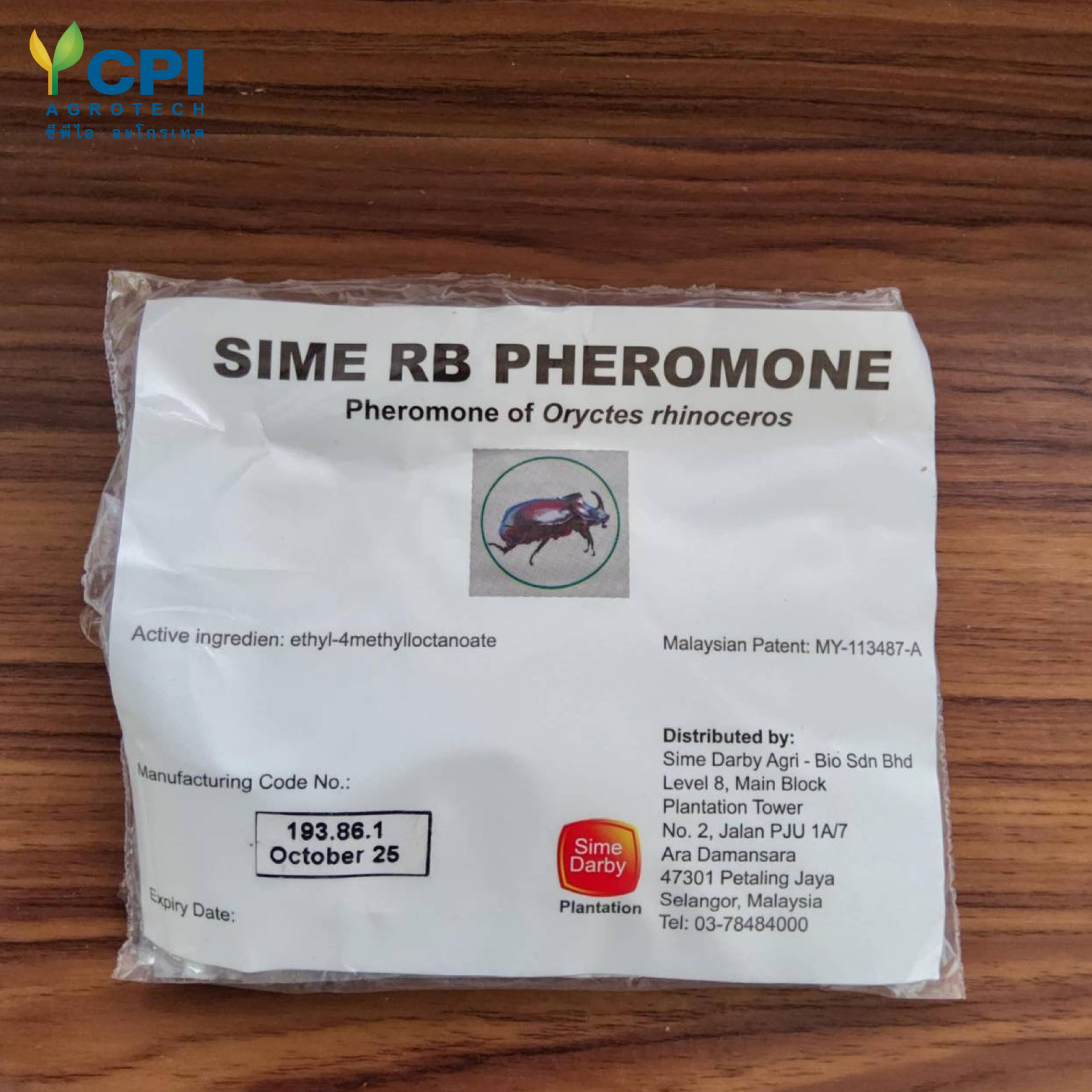

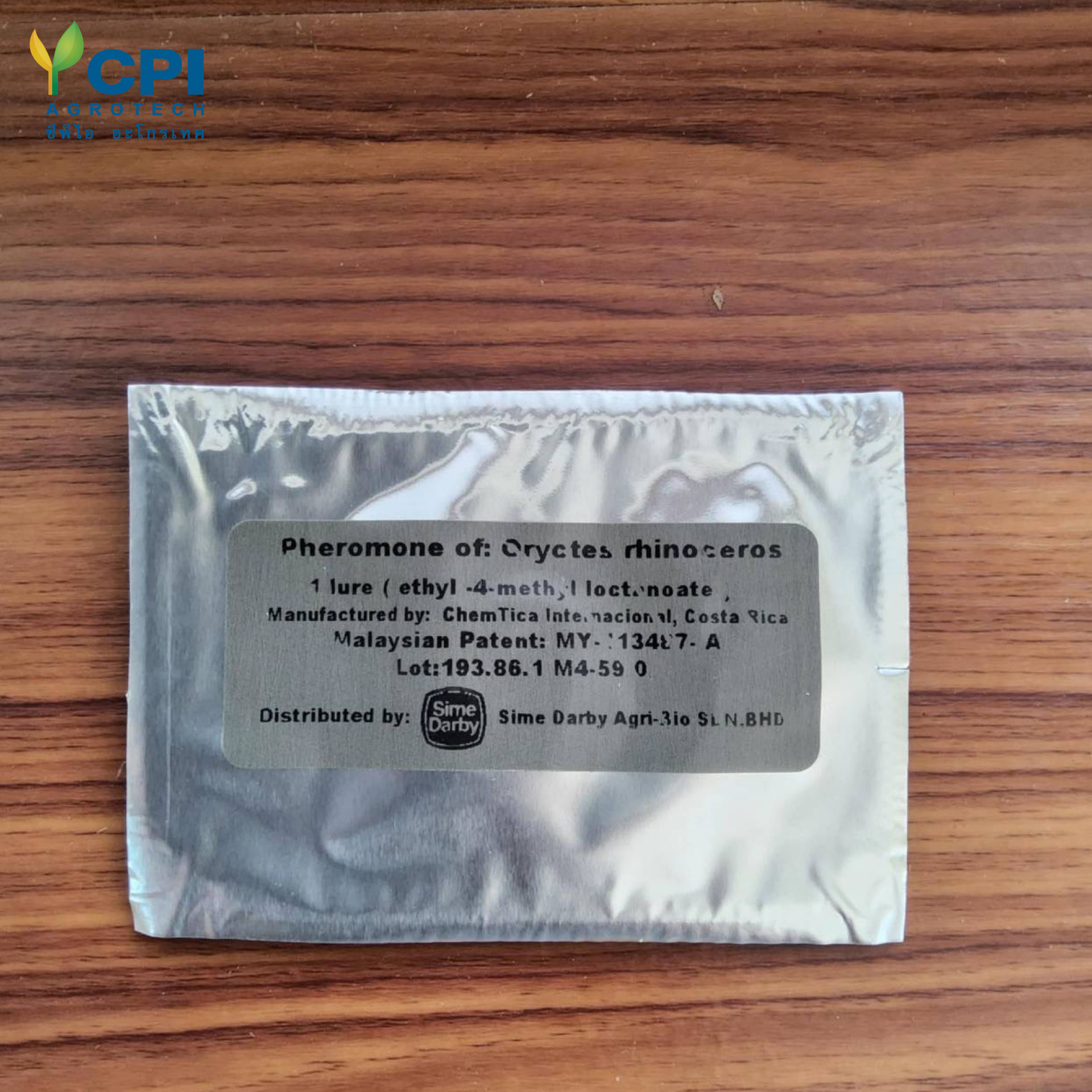

• Oryctes rhinoceros Pheromone

Assembly Instructions:

1. Prepare the Bucket:
   • Select a black bucket with a capacity of 16-18 liters.
   • Drill a hole near the rim for hanging the pheromone packet.
   • Drill additional holes at the bottom for drainage.

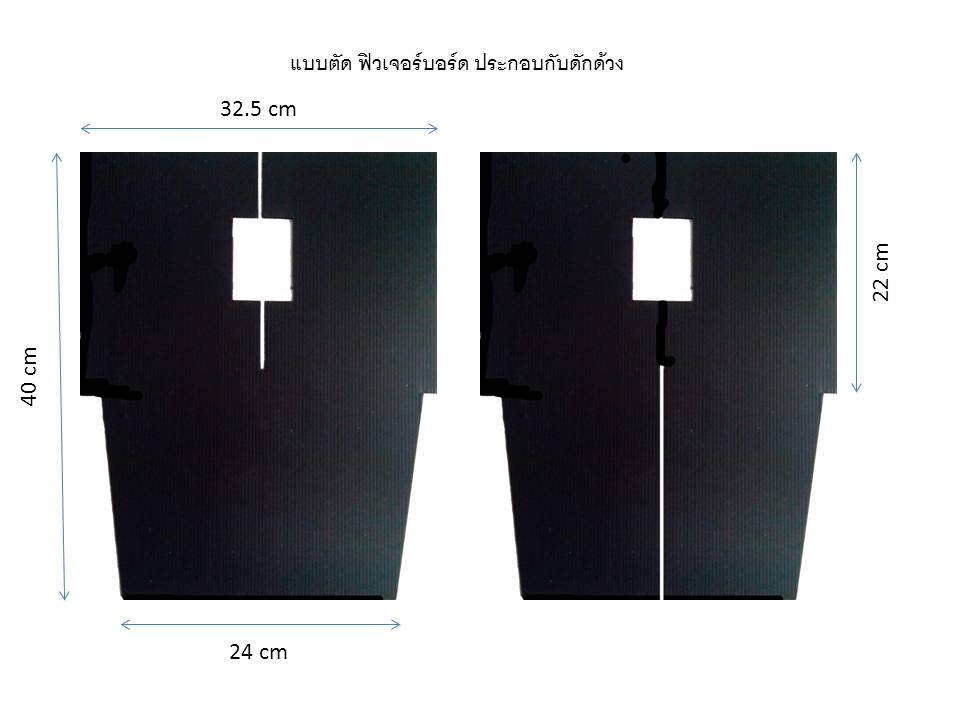

2. Prepare the Plastic Boards:
   • Cut two pieces of corrugated plastic board to the size of 40-60 cm high and 30-40 cm wide.
3. Attach the Plastic Boards:
   • Position the two plastic boards in a cross shape.
   • Secure them together at the intersection using wire.
4. Attach the Boards to the Bucket:
   • Attach the cross-shaped plastic boards to the bucket using wire.
   • Ensure the boards are securely fastened and can withstand wind.
5. Hang the Pheromone:
   • Place the Oryctes rhinoceros Pheromone inside the hole near the rim of the bucket.
   • Ensure the packet is securely hung and positioned to release its scent effectively.
6. Install the Trap:
   • Place the trap in your desired location.
   • Install it at a height of about 1.5-2 meters above the ground.
